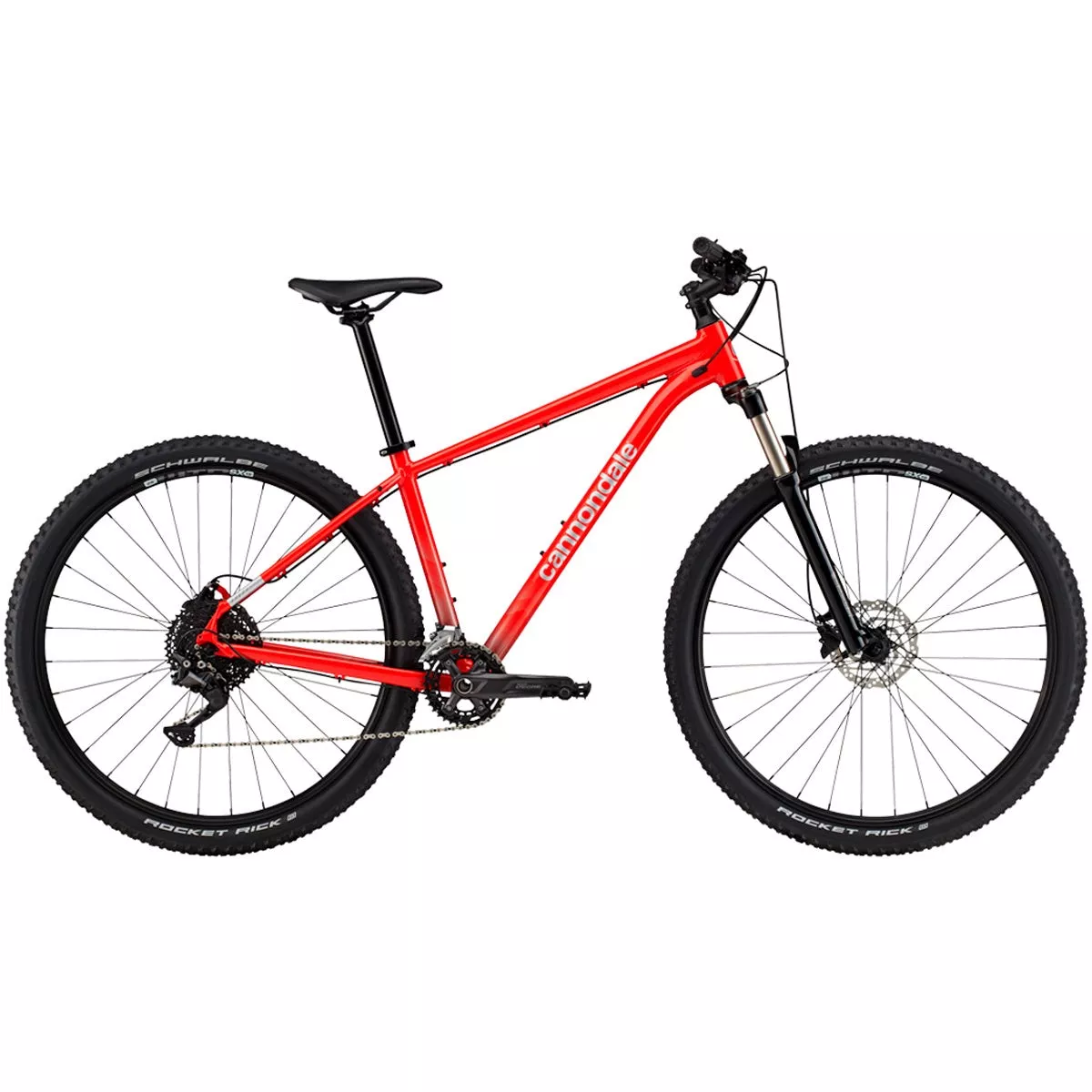

Cannondale Trail 5, a mountain bike that generates passion for trail – from the first time you go out to the next big challenge.
- Frame: All-New, SmartForm C3 Alloy, SAVE, 1-1 / 8 “headtube, post mount disc, StraightShot internal cable routing, BSA-73.
- Fork: SR Suntour XCR32-RL, 100mm, remote lockout, Coil, 42mm offset (27.5 “) 46mm offset (29”).
- Rims: WTB SX19, 32h.
- Hubs: Shimano QR.
- Spokes: Stainless Steel, 14g.
- Tires: Schwalbe Rocket Rick, 27.5 / 29 x 2.25 “, K-Guard.
- Pedals: Cannondale Platform.
- Crankset: Prowheel alloy 2-piece, 36/26.
- Bottom bracket: Prowheel.
- Chain: KMC X10, 10-speed.
- Sprockets: Sunrace, 11-42, 10-speed.
- Front derailleur: Shimano Deore, 34.9 clamp.
- Rear derailleur: Shimano Deore GS.
- Brake levers: Shimano Deore, 2×10.
- Handlebar: Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8th sweep, 4th rise, 760mm.
- Knobs: Cannondale Dual-Density.
- Stem: 6061 Alloy, 31.8, 6th.
- Headset: Semi Integrated, 1-1 / 8 “.
- Brakes: Shimano MT200 hydro disc, 160 / 160mm RT10 rotors.
- Saddle: Cannondale Stage 3.
- Seatpost: 6061 Alloy, 31.6 x 350mm.
- Sizes: (27.5) XS, S (29) M, L, XL.
- Color: rally red.
